Meet the toolkit

Lecture 1

Josh Lim

Duke University
STA 199 Summer 2026: Session 2
Adapted from slides by Mine Çetinkaya-Rundel, Katie Solarz & John Zito

May 14, 2026

Reminders

• If you have not yet finished the Getting to know you survey, please do so ASAP
• Any lingering syllabus questions?

Today: Course Toolkit

Course Toolkit

Course operation

• Materials: sta199-su26.github.io
• Submission: Gradescope (in Canvas)
• Content Q&A: Ed Discussion (in Canvas)
• Grades: Gradebook (in Canvas)

Doing data science

• Computing:
  • R
  • RStudio
  • tidyverse and friends
  • Quarto
• Version control:
  • Git
  • GitHub

Toolkit: Computing

Learning goals

By the end of the course, you will be able to…

• gain insight from data
• gain insight from data, reproducibly
• gain insight from data, reproducibly, using modern programming tools and techniques
• gain insight from data, reproducibly and collaboratively, using modern programming tools and techniques
• gain insight from data, reproducibly (with literate programming and version control) and collaboratively, using modern programming tools and techniques

Two important concepts

Computational reproducibility:

• If you give me your code and your data and I hit “Run,” do I get the same numbers and the same pictures that you published in your article?
• If so…phew!
• If not…what the 🤬?

Scientific replication:

• Can new researchers conduct an independent analysis and reach the same substantive conclusions that you did?
• Just because your analysis is computationally reproducible does not mean that you have a robust result that generalizes.

Our tools will help you achieve the first, which is necessary (but not sufficient!) for the second.

Reproducibility checklist

What does it mean for a data analysis to be “reproducible”?

Short-term goals:

• Are the tables and figures reproducible from the code and data?
• Does the code actually do what you think it does?
• In addition to what was done, is it clear why it was done?

Long-term goals:

• Can the code be used for other data?
• Can you extend the code to do other things?

Some best practices from the American Statistical Association

• End-to-end scripting of research
• Use of version control and documentation
• Publication of code along with data

Toolkit for reproducibility

• Scriptability – Coding instead of point-and-click \(\rightarrow\) R

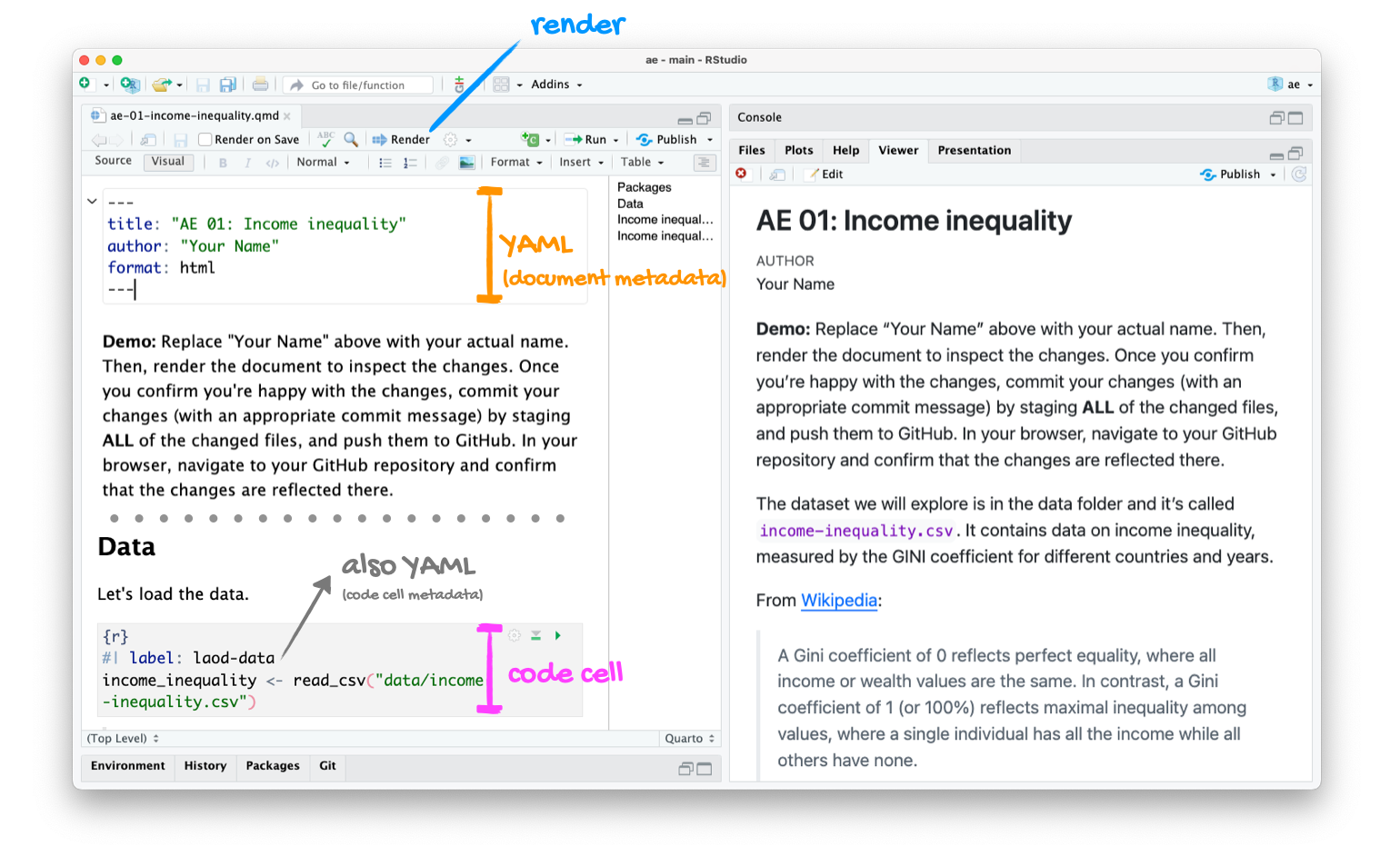

• Literate programming – Code, written text, results all in one place instead of error-prone copy-paste \(\rightarrow\) Quarto
• Version control – Track changes with brief messages that describe those changes \(\rightarrow\) Git / GitHub

Collaboration

• Collaboration doesn’t just mean working with others. It also means collaborating with yourself across time;
• Too often, I have set something aside only to return to it several weeks (or even days!) later and ask “who did this and what were they thinking?”
• Our tools will make you an excellent collaborator with others, but they will also help you keep yourself organized.

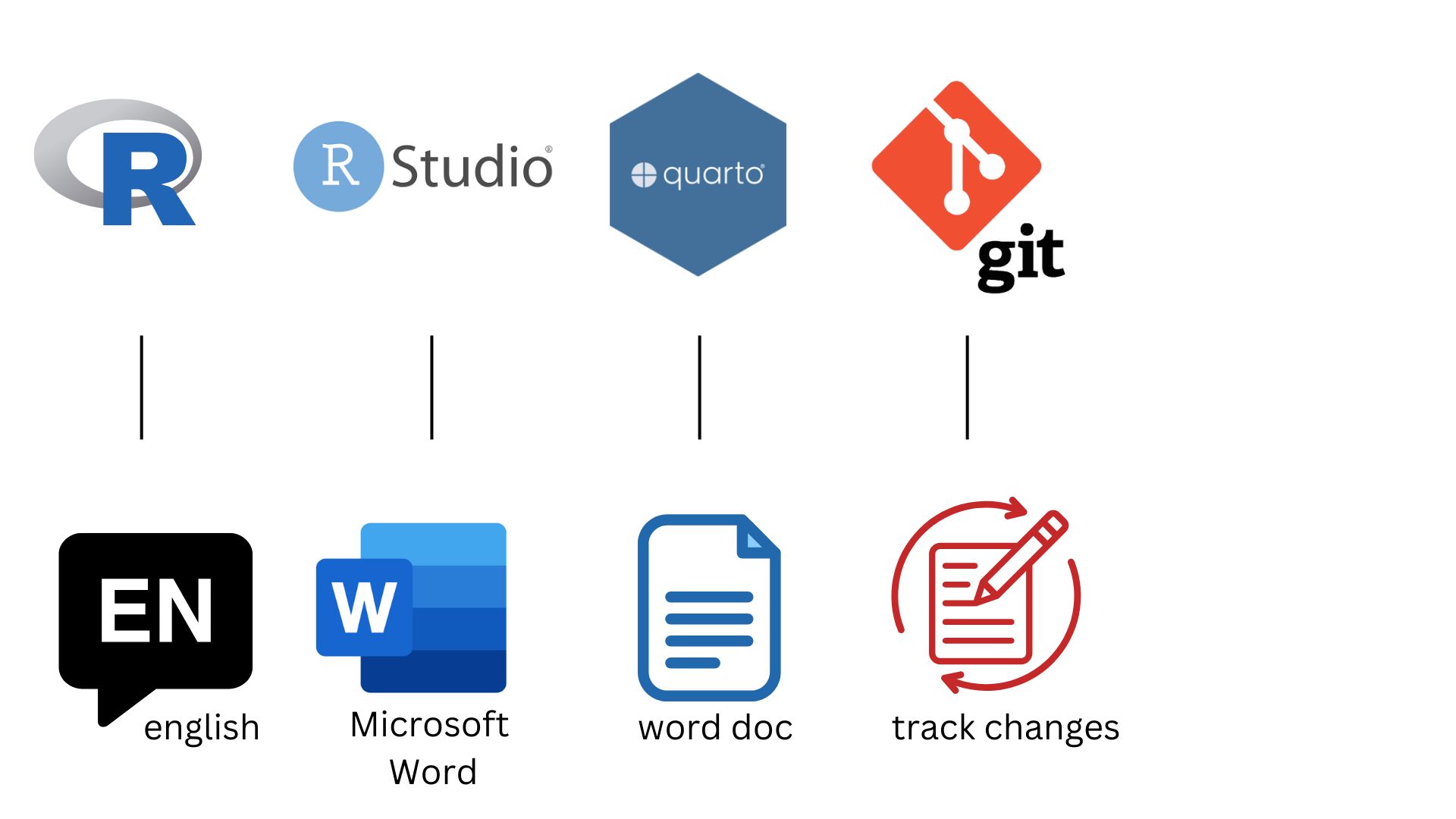

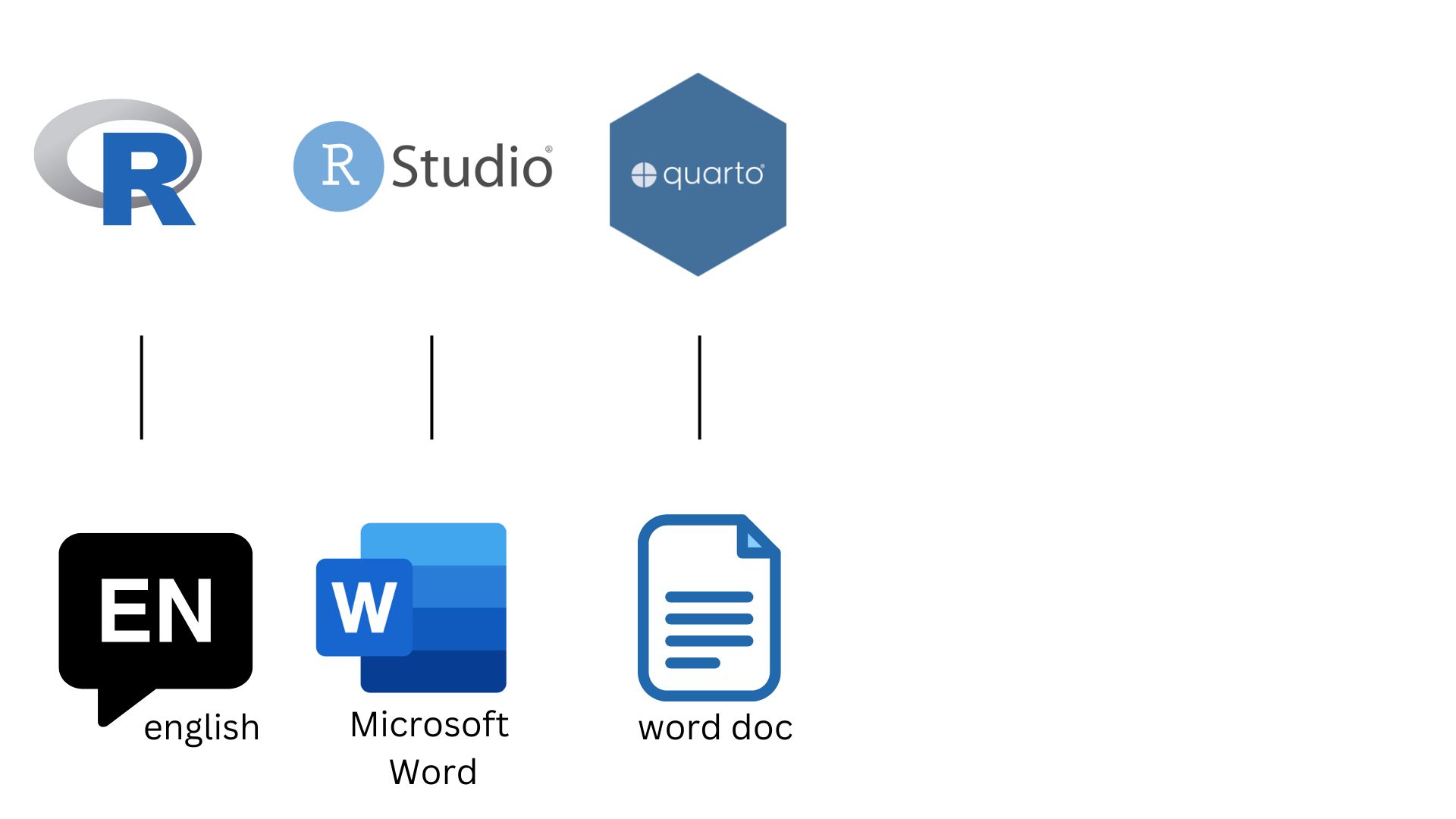

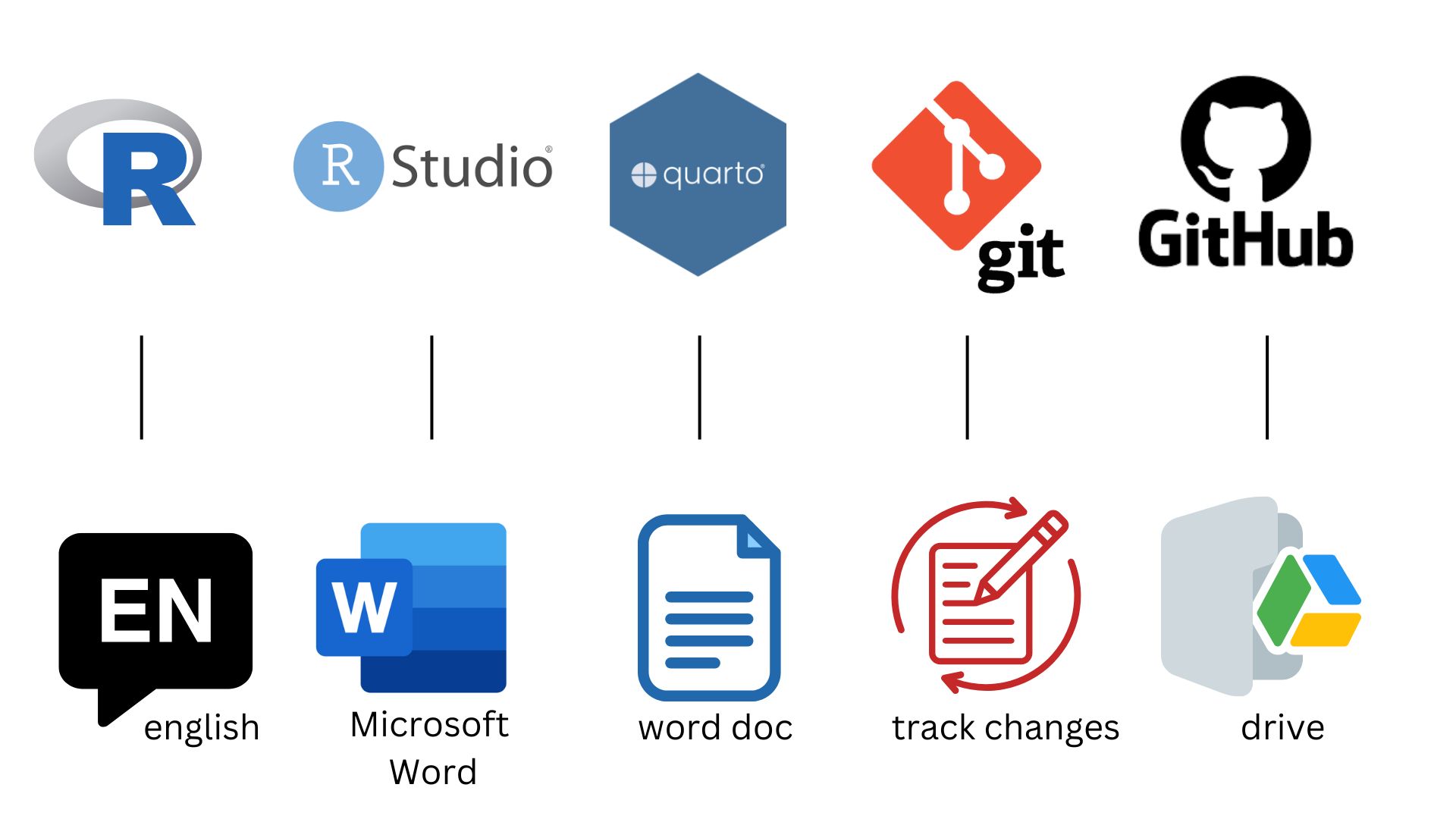

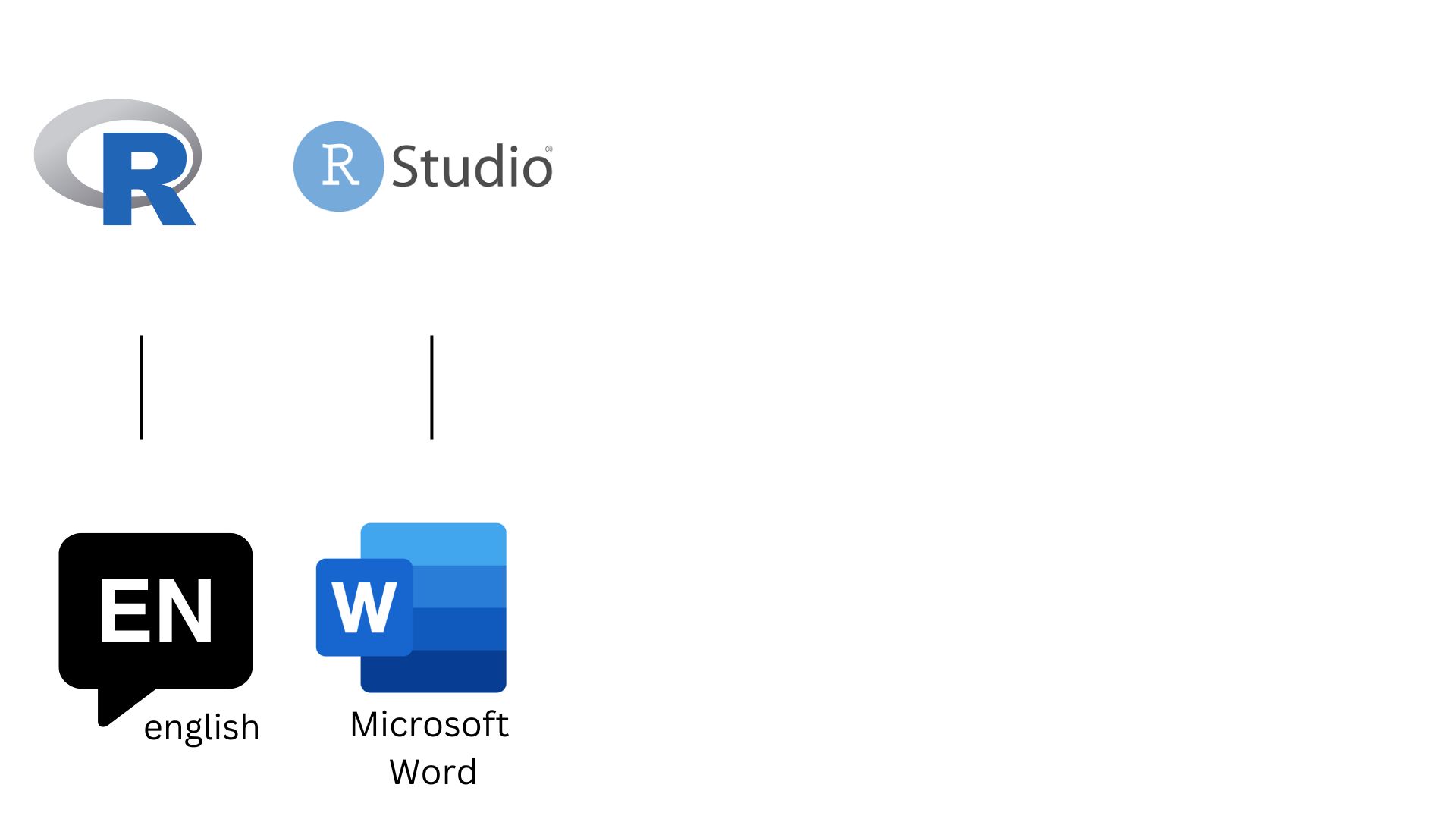

An Analogy to English

An Analogy to English

An Analogy to English

An Analogy to English

An Analogy to English

R and RStudio

R and RStudio

• R is an open-source statistical programming language
• R is also an environment for statistical computing and graphics
• It’s easily extensible with packages

• RStudio is a convenient interface for R called an IDE (integrated development environment), e.g. “I write R code in the RStudio IDE”
• RStudio is not a requirement for programming with R, but it’s very commonly used by R programmers and data scientists

R vs. RStudio

Source: Modern Dive.

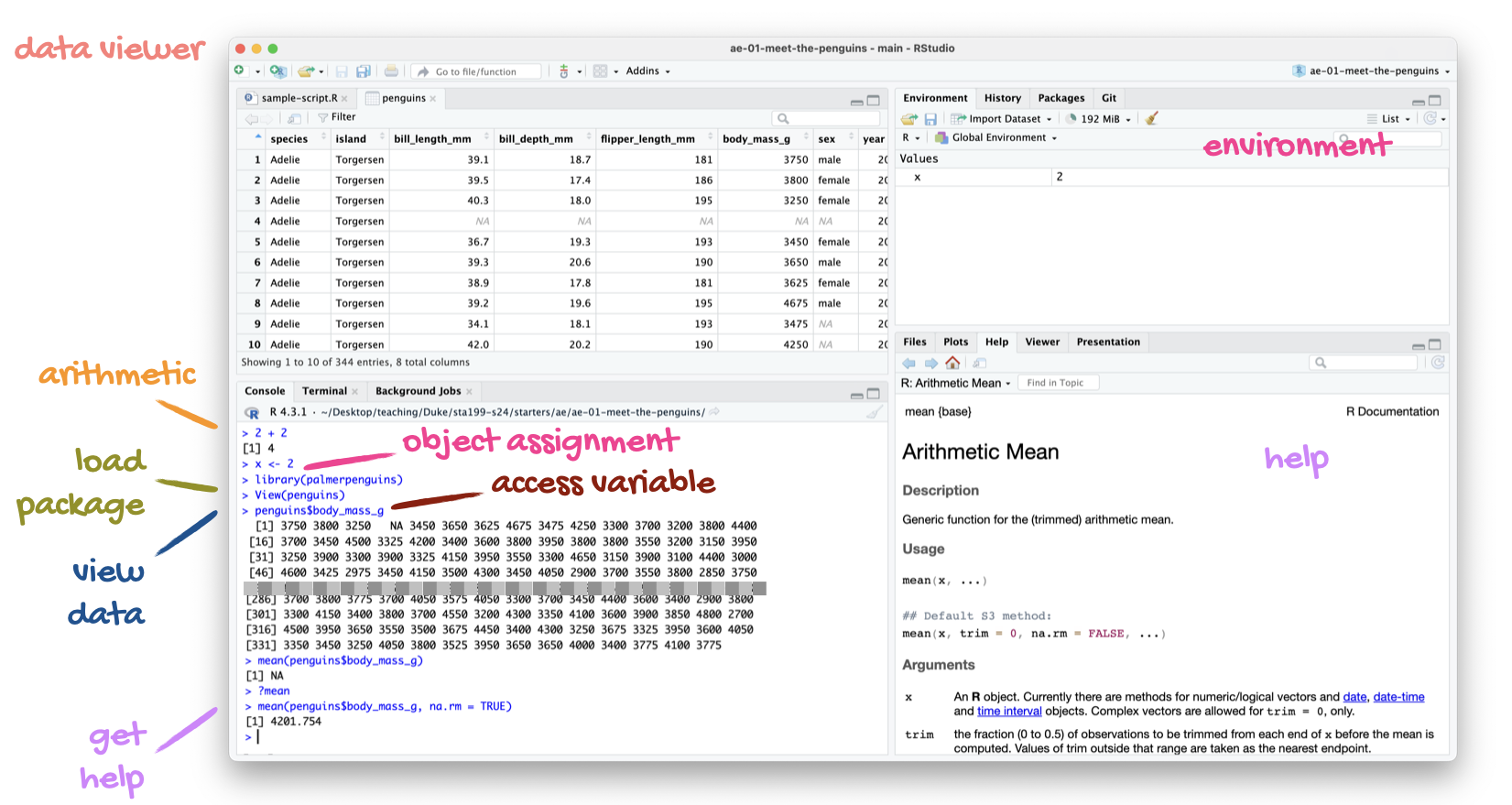

Tour: R + RStudio

Option 1:

Sit back and enjoy the show!

Option 2:

Go to your container and launch RStudio.

Tour recap: R + RStudio

A short list
(for now)
of R essentials

R packages

• Packages: Fundamental units of reproducible R code, including reusable R functions, the documentation that describes how to use them, and sample data¹

• As of 13 May 2026, there are 23,731 R packages available on CRAN (the Comprehensive R Archive Network)²

• We’re going to work with a small (but important) subset of these!

¹ Wickham and Bryan, R Packages.

²CRAN contributed packages.

Packages

• Installed with install.packages(), once per system:

install.packages("palmerpenguins")

Note

We already pre-installed many of the package you’ll need for this course, so you might go the whole semester without needing to run install.packages()!

• Loaded with library(), once per session:

library(palmerpenguins)

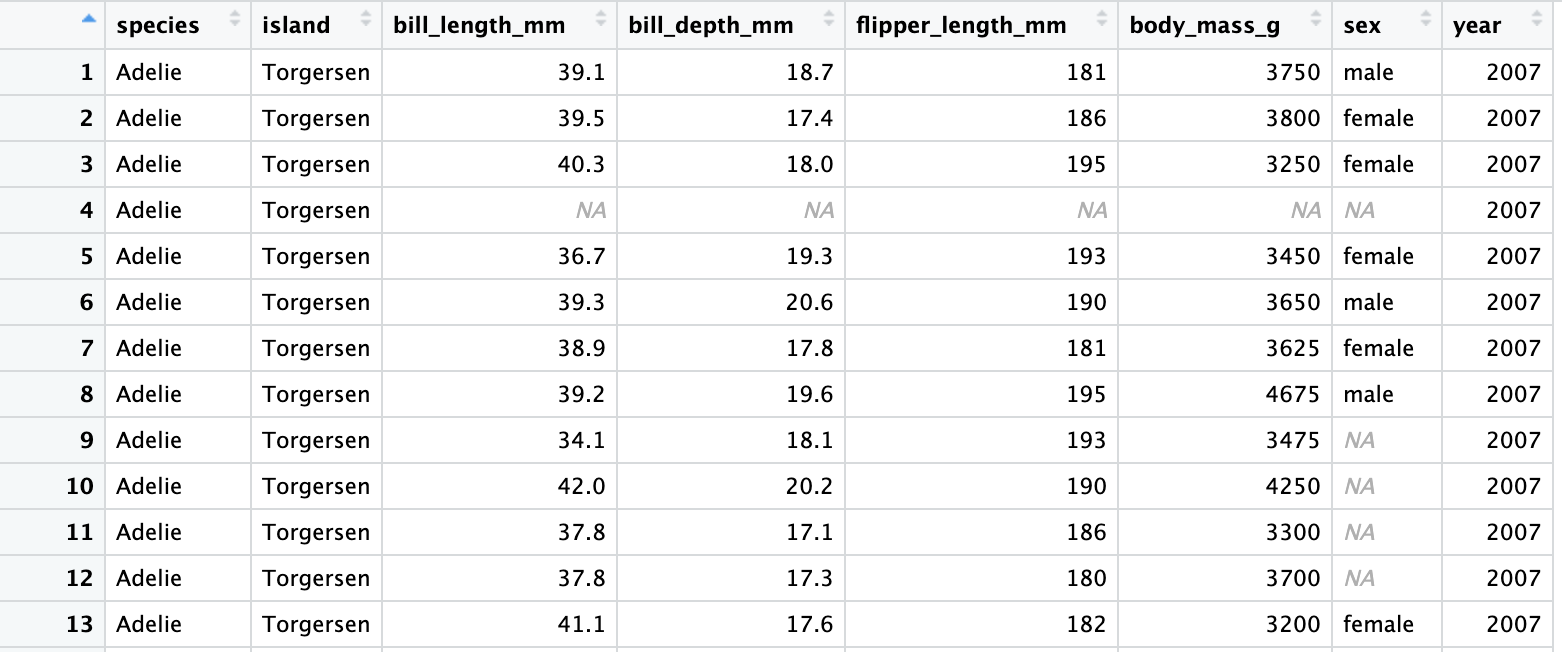

Data frames and variables

• Each row of a data frame is an observation

• Each column of a data frame is a variable

• Columns (variables) in data frames can be accessed with $:

dataframe$variable_name

penguins data frame

penguins

# A tibble: 344 × 8
   species island    bill_length_mm bill_depth_mm flipper_length_mm
   <fct>   <fct>              <dbl>         <dbl>             <int>
 1 Adelie  Torgersen           39.1          18.7               181
 2 Adelie  Torgersen           39.5          17.4               186
 3 Adelie  Torgersen           40.3          18                 195
 4 Adelie  Torgersen           NA            NA                  NA
 5 Adelie  Torgersen           36.7          19.3               193
 6 Adelie  Torgersen           39.3          20.6               190
 7 Adelie  Torgersen           38.9          17.8               181
 8 Adelie  Torgersen           39.2          19.6               195
 9 Adelie  Torgersen           34.1          18.1               193
10 Adelie  Torgersen           42            20.2               190
# ℹ 334 more rows
# ℹ 3 more variables: body_mass_g <int>, sex <fct>, year <int>

bill_length_mm

penguins$bill_length_mm

  [1] 39.1 39.5 40.3   NA 36.7 39.3 38.9 39.2 34.1 42.0 37.8 37.8 41.1
 [14] 38.6 34.6 36.6 38.7 42.5 34.4 46.0 37.8 37.7 35.9 38.2 38.8 35.3
 [27] 40.6 40.5 37.9 40.5 39.5 37.2 39.5 40.9 36.4 39.2 38.8 42.2 37.6
 [40] 39.8 36.5 40.8 36.0 44.1 37.0 39.6 41.1 37.5 36.0 42.3 39.6 40.1
 [53] 35.0 42.0 34.5 41.4 39.0 40.6 36.5 37.6 35.7 41.3 37.6 41.1 36.4
 [66] 41.6 35.5 41.1 35.9 41.8 33.5 39.7 39.6 45.8 35.5 42.8 40.9 37.2
 [79] 36.2 42.1 34.6 42.9 36.7 35.1 37.3 41.3 36.3 36.9 38.3 38.9 35.7
 [92] 41.1 34.0 39.6 36.2 40.8 38.1 40.3 33.1 43.2 35.0 41.0 37.7 37.8
[105] 37.9 39.7 38.6 38.2 38.1 43.2 38.1 45.6 39.7 42.2 39.6 42.7 38.6
[118] 37.3 35.7 41.1 36.2 37.7 40.2 41.4 35.2 40.6 38.8 41.5 39.0 44.1
[131] 38.5 43.1 36.8 37.5 38.1 41.1 35.6 40.2 37.0 39.7 40.2 40.6 32.1
[144] 40.7 37.3 39.0 39.2 36.6 36.0 37.8 36.0 41.5 46.1 50.0 48.7 50.0
[157] 47.6 46.5 45.4 46.7 43.3 46.8 40.9 49.0 45.5 48.4 45.8 49.3 42.0
[170] 49.2 46.2 48.7 50.2 45.1 46.5 46.3 42.9 46.1 44.5 47.8 48.2 50.0
[183] 47.3 42.8 45.1 59.6 49.1 48.4 42.6 44.4 44.0 48.7 42.7 49.6 45.3
[196] 49.6 50.5 43.6 45.5 50.5 44.9 45.2 46.6 48.5 45.1 50.1 46.5 45.0
[209] 43.8 45.5 43.2 50.4 45.3 46.2 45.7 54.3 45.8 49.8 46.2 49.5 43.5
[222] 50.7 47.7 46.4 48.2 46.5 46.4 48.6 47.5 51.1 45.2 45.2 49.1 52.5
[235] 47.4 50.0 44.9 50.8 43.4 51.3 47.5 52.1 47.5 52.2 45.5 49.5 44.5
[248] 50.8 49.4 46.9 48.4 51.1 48.5 55.9 47.2 49.1 47.3 46.8 41.7 53.4
[261] 43.3 48.1 50.5 49.8 43.5 51.5 46.2 55.1 44.5 48.8 47.2   NA 46.8
[274] 50.4 45.2 49.9 46.5 50.0 51.3 45.4 52.7 45.2 46.1 51.3 46.0 51.3
[287] 46.6 51.7 47.0 52.0 45.9 50.5 50.3 58.0 46.4 49.2 42.4 48.5 43.2
[300] 50.6 46.7 52.0 50.5 49.5 46.4 52.8 40.9 54.2 42.5 51.0 49.7 47.5
[313] 47.6 52.0 46.9 53.5 49.0 46.2 50.9 45.5 50.9 50.8 50.1 49.0 51.5
[326] 49.8 48.1 51.4 45.7 50.7 42.5 52.2 45.2 49.3 50.2 45.6 51.9 46.8
[339] 45.7 55.8 43.5 49.6 50.8 50.2

Why did the error occur?

flipper_length_mm

Error:
! object 'flipper_length_mm' not found

flipper_length_mm

This can be fixed by using penguins$flipper_length_mm.

penguins$flipper_length_mm

  [1] 181 186 195  NA 193 190 181 195 193 190 186 180 182 191 198 185
 [17] 195 197 184 194 174 180 189 185 180 187 183 187 172 180 178 178
 [33] 188 184 195 196 190 180 181 184 182 195 186 196 185 190 182 179
 [49] 190 191 186 188 190 200 187 191 186 193 181 194 185 195 185 192
 [65] 184 192 195 188 190 198 190 190 196 197 190 195 191 184 187 195
 [81] 189 196 187 193 191 194 190 189 189 190 202 205 185 186 187 208
 [97] 190 196 178 192 192 203 183 190 193 184 199 190 181 197 198 191
[113] 193 197 191 196 188 199 189 189 187 198 176 202 186 199 191 195
[129] 191 210 190 197 193 199 187 190 191 200 185 193 193 187 188 190
[145] 192 185 190 184 195 193 187 201 211 230 210 218 215 210 211 219
[161] 209 215 214 216 214 213 210 217 210 221 209 222 218 215 213 215
[177] 215 215 216 215 210 220 222 209 207 230 220 220 213 219 208 208
[193] 208 225 210 216 222 217 210 225 213 215 210 220 210 225 217 220
[209] 208 220 208 224 208 221 214 231 219 230 214 229 220 223 216 221
[225] 221 217 216 230 209 220 215 223 212 221 212 224 212 228 218 218
[241] 212 230 218 228 212 224 214 226 216 222 203 225 219 228 215 228
[257] 216 215 210 219 208 209 216 229 213 230 217 230 217 222 214  NA
[273] 215 222 212 213 192 196 193 188 197 198 178 197 195 198 193 194
[289] 185 201 190 201 197 181 190 195 181 191 187 193 195 197 200 200
[305] 191 205 187 201 187 203 195 199 195 210 192 205 210 187 196 196
[321] 196 201 190 212 187 198 199 201 193 203 187 197 191 203 202 194
[337] 206 189 195 207 202 193 210 198

function(argument)

Functions are (most often) verbs, followed by what they will be applied to in parentheses:

do_this(to_this)
do_that(to_this, to_that, with_those)

mean()

Let’s compute the average of a set of numbers:

x <- c(1, 2, 3, 4, 5, 6, 7, 8, 9)
x

[1] 1 2 3 4 5 6 7 8 9

mean(x)

[1] 5

Help

Object documentation can be accessed with ?

?mean

Summary of R essentials

• Functions are (most often) verbs, followed by what they will be applied to in parentheses:

do_this(to_this)
do_that(to_this, to_that, with_those)

• Packages are installed with the install.packages() function and loaded with the library function, once per session:

install.packages("package_name")
library(package_name)

Your containers come “fully loaded,” so you may not have to install any new packages.

Summary of R essentials (continued)

Data frames: like the spreadsheets of R

• Each row of a data frame is an observation
• Each column of a data frame is a variable

Summary of R essentials (continued)

• Use the question mark ? to get help with objects (like data frames and functions):

?function_name

• Use the dollar sign $ to access columns

dataframe$column

Note

Generally, you need to use the $ to tell R where to find that column.

Summary of R essentials (continued)

• Use the arrow <- or equals sign = to save objects

x = some_thing
y <- some_other_thing

Note

Check your environment pane for the saved object!

Summary of R essentials (continued)

• Read your error messages!

• These are essential for figuring out where your code is going wrong.

Note

If you have trouble understanding what a message is saying, there is a high chance someone has explained the message online.

Packages, an analogy

If data analysis was cooking…

• Installing a package would be like buying ingredients from the store

• Loading a package would be like getting the ingredients out of your pantry and setting them on your counter top to be used

tidyverse

aka the package you’ll hear about the most…

tidyverse.org

• The tidyverse is an opinionated collection of R packages designed for data science
• All packages share an underlying philosophy and a common grammar

Toolkit: Version control and collaboration

Git and GitHub

• Git is a version control system – like “Track Changes” features from Microsoft Word, on steroids
• It’s not the only version control system, but it’s a very popular one

• GitHub is the home for your Git-based projects on the internet – like DropBox but much, much better

• We will use GitHub as a platform for web hosting and collaboration (and as our course management system!)

Versioning - done badly

Versioning - done better

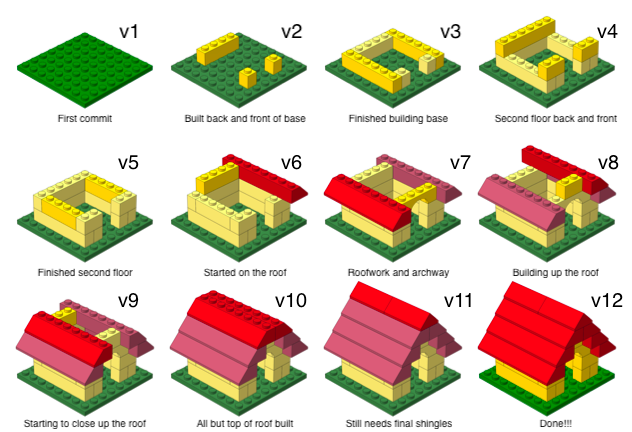

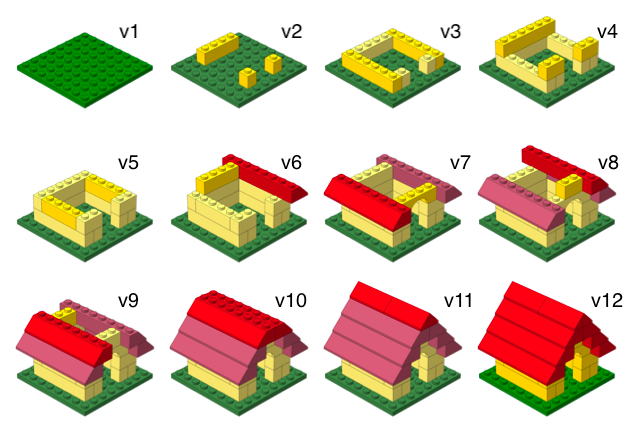

Versioning - done even better

with human readable messages

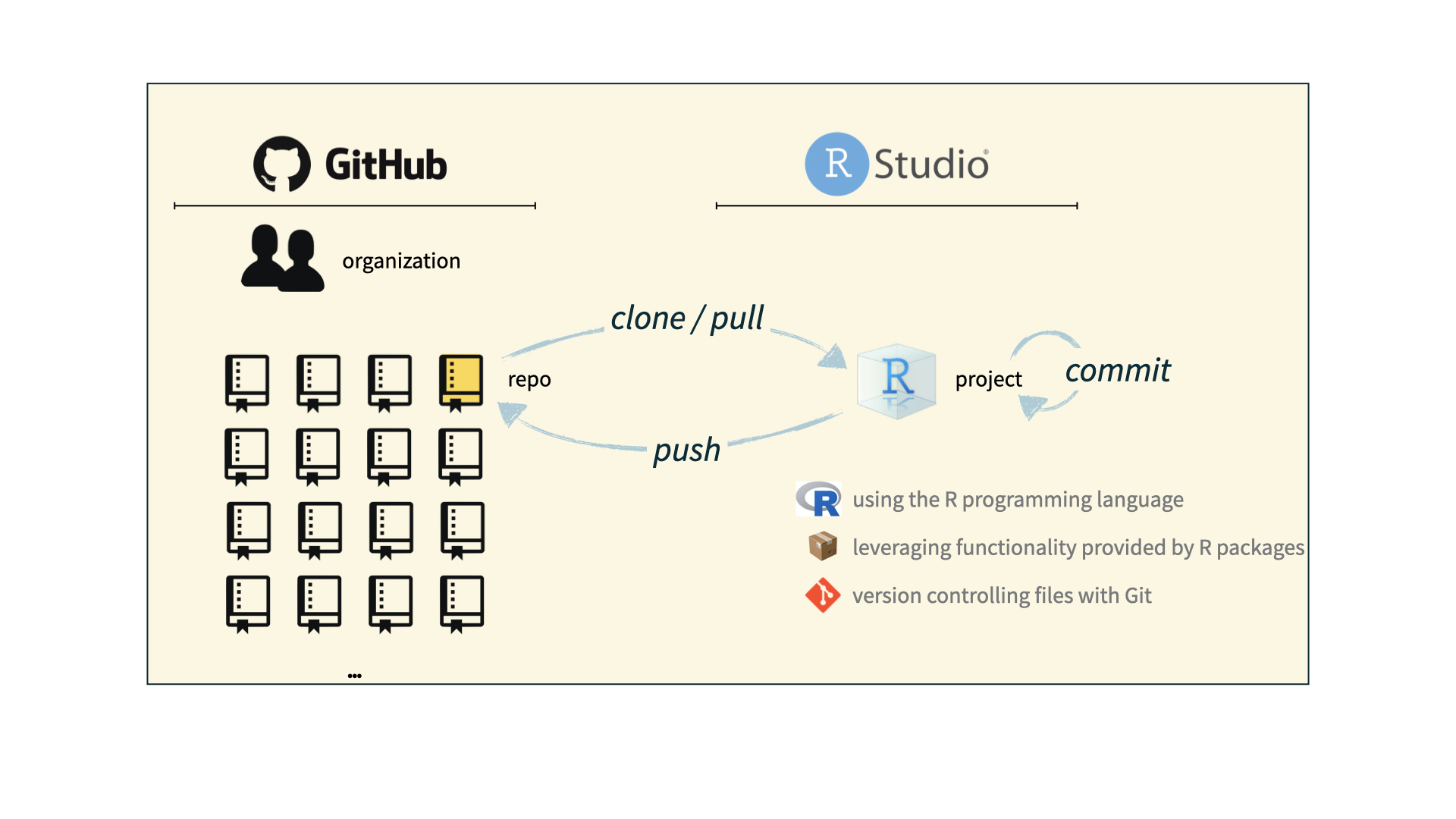

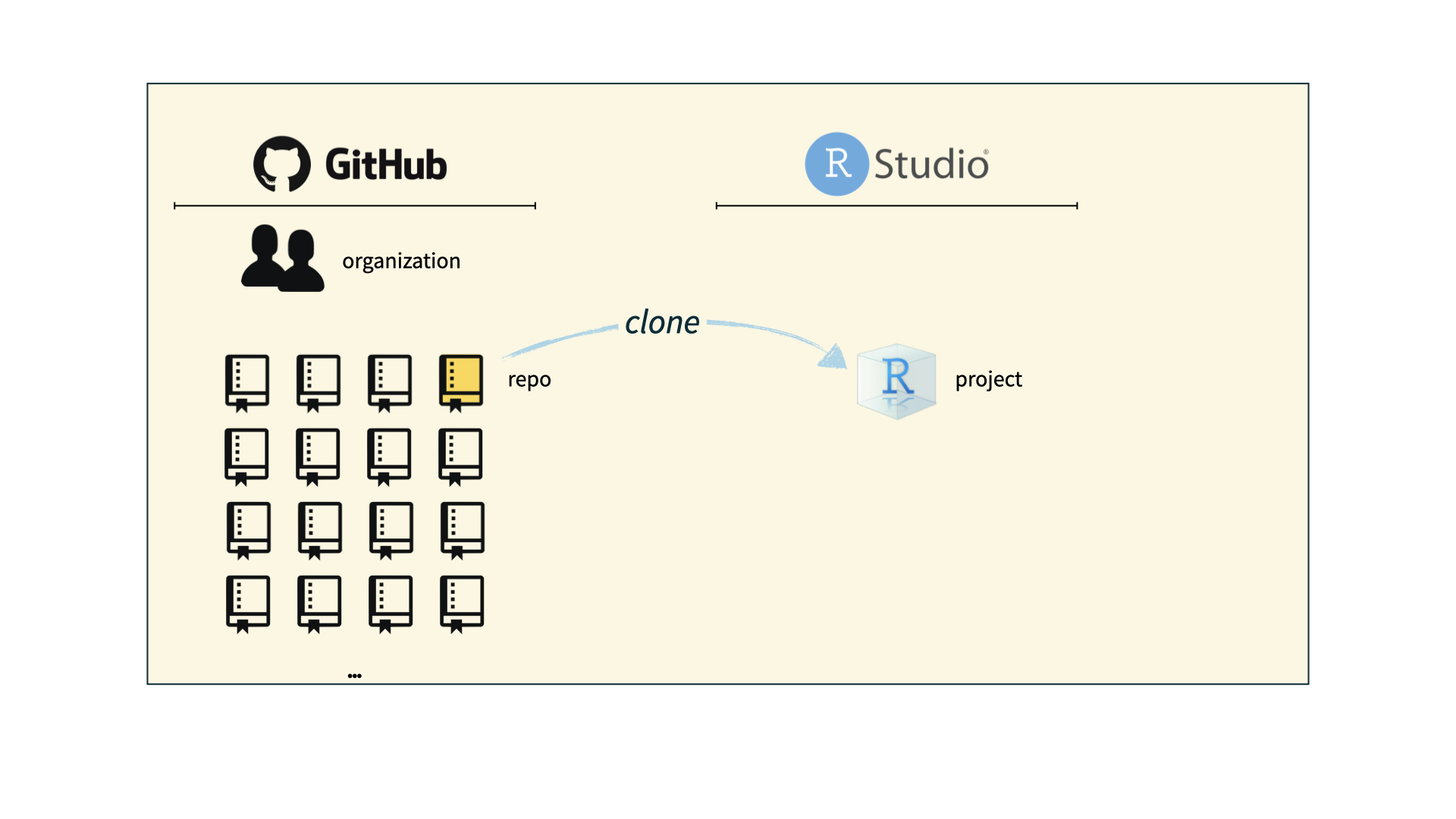

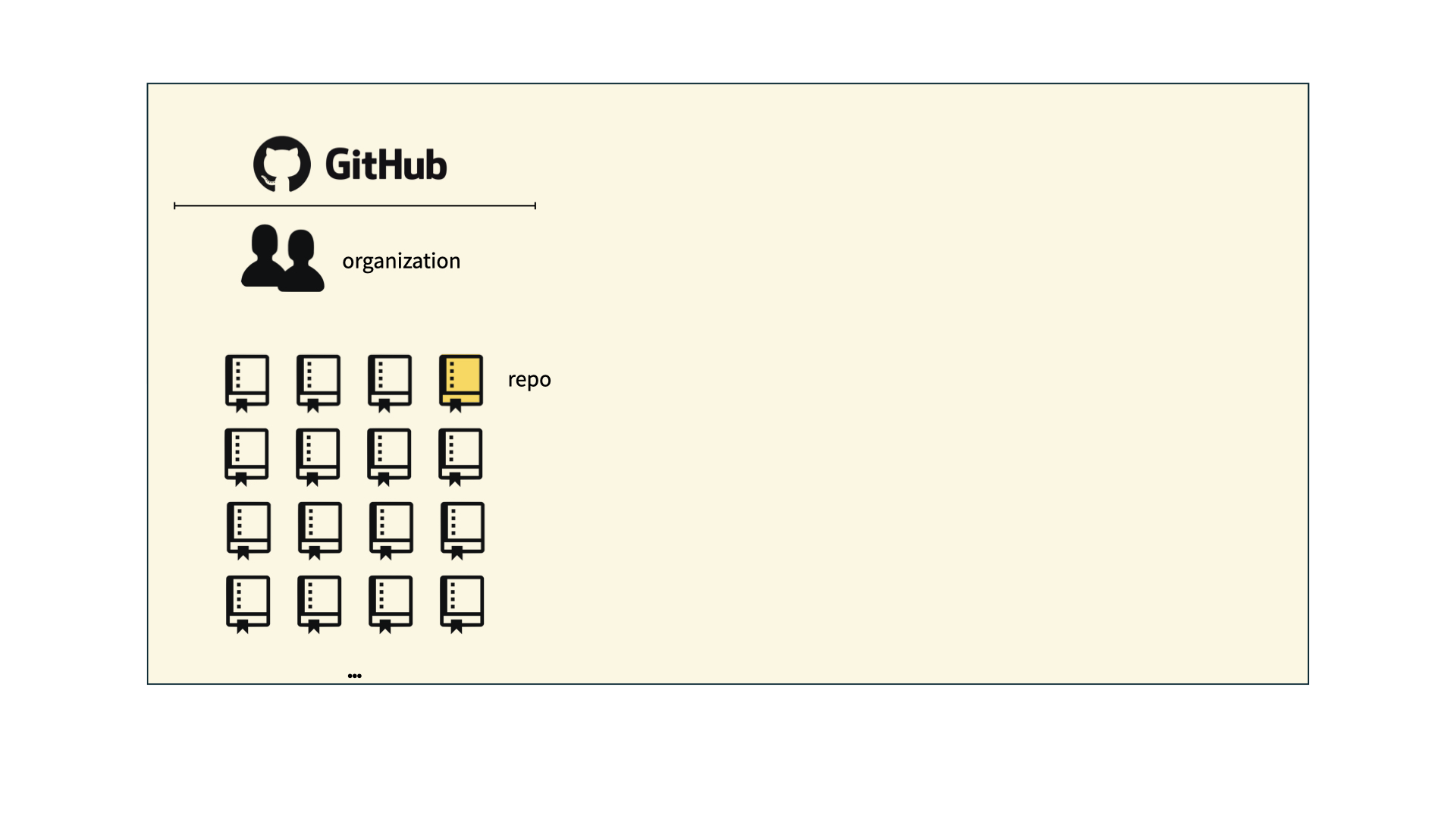

How will we use Git and GitHub?

How will we use Git and GitHub?

How will we use Git and GitHub?

How will we use Git and GitHub?

Git and GitHub tips

• There are millions of git commands – ok, that’s an exaggeration, but there are a lot of them – and very few people know them all. 99% of the time you will use git to add, commit, push, and pull.
• We will be doing Git things and interfacing with GitHub through RStudio, but if you google for help you might come across methods for doing these things in the command line – skip that and move on to the next resource unless you feel comfortable trying it out.
• There is a great resource for working with git and R: happygitwithr.com. Some of the content in there is beyond the scope of this course, but it’s a good place to look for help.

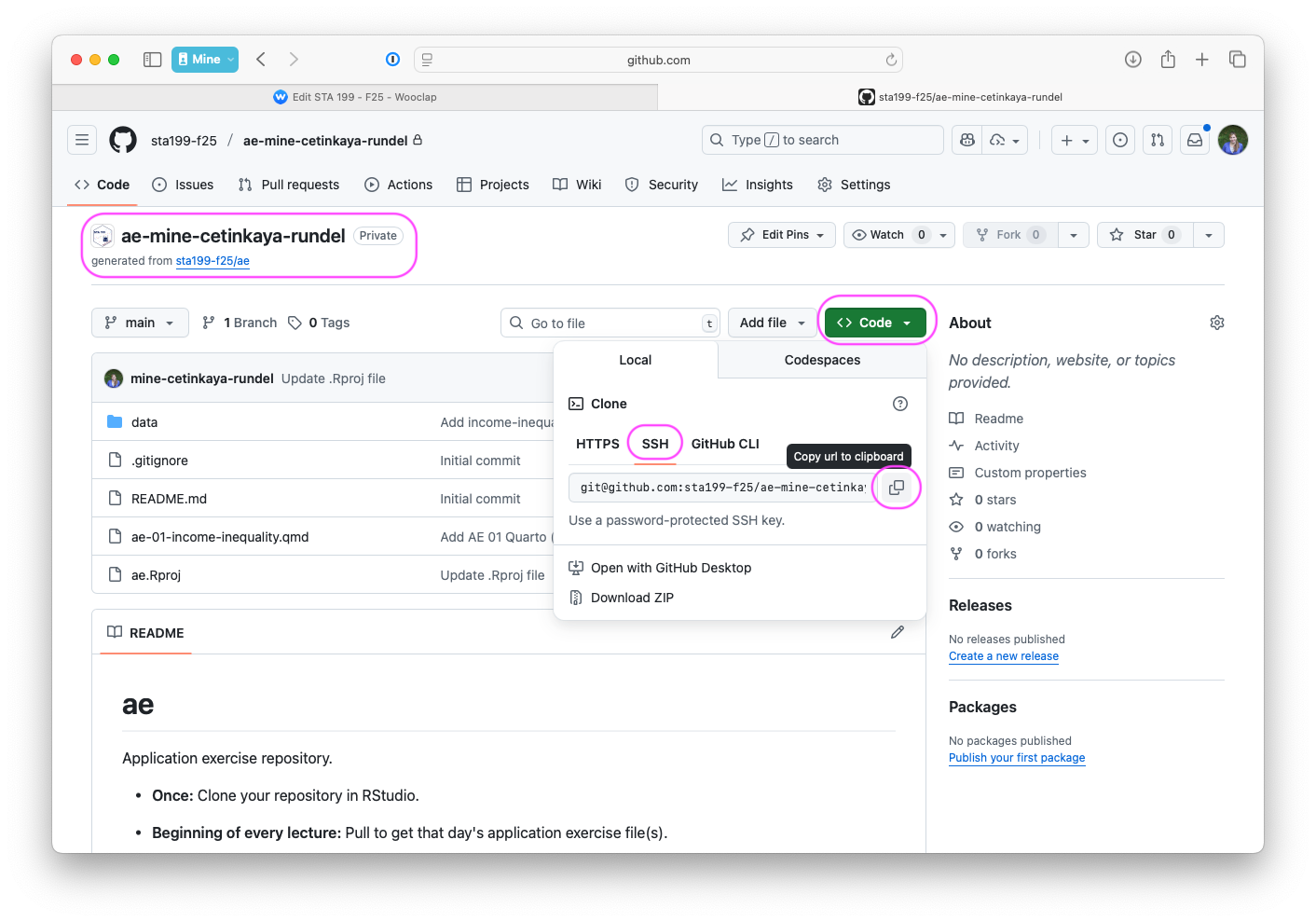

Tour: Git + GitHub

Option 1:

Sit back and enjoy the show!

Note

You’ll need to stick to this option if you haven’t yet accepted your GitHub invite and don’t have a repo created for you.

Option 2:

Go to the course GitHub organization and clone ae-your-github-username repo to your container.

Tour recap: Git + GitHub

• Find your application exercise repo, that will always be named using the naming convention assignment_title-your-github-username, e.g., ae-kgsolarz or lab-1-kgsolarz.

• Click on the green “Code” button, make sure SSH is selected, copy the repo URL

• In RStudio, File > New Project > From Version Control > Git

• Paste repo URL copied in previous step, then click tab to auto-fill the project name, then click Create Project

• If you haven’t done Lab 0, for one time only, type yes in the pop-up dialogue

What could have gone wrong?

• Never accepted GitHub invite \(\rightarrow\) Look for it in your email and accept it

• Cloning repo fails \(\rightarrow\) Review/redo Lab 0 steps for setting up SSH key

• Still no luck? Stay after class today or come by my office hours this weekend or post on Ed for help

Quarto

Quarto

• Fully reproducible reports – each time you render the analysis is run from the beginning;
• Code goes in cells (between the three back ticks);
• Written English goes outside cells, the same way you would write in Google Docs or MS Word.

Tour: Quarto

Option 1:

Sit back and enjoy the show!

Note

If you chose (or had to choose) this option for the previous tour, or if you couldn’t clone your repo for any reason, you’ll need to stick to this option.

Option 2:

Go to RStudio and open the document ae-01-meet-the-penguins.qmd.

Tour: Quarto (and more Git + GitHub)

Tour recap: Quarto

Tour recap: Git + GitHub

Once we made changes to our Quarto document, we

• went to the Git pane in RStudio

• staged our changes by clicking the checkboxes next to the relevant files

• committed our changes with an informative commit message

• pulled from GitHub to make sure we had the latest version of our repo

• pushed our changes to our application exercise repos

• confirmed on GitHub that we could see our changes pushed from RStudio

How will we use Quarto?

• Every application exercise, lab, project, etc. is an Quarto document
• You’ll always have a template Quarto document to start with
• The amount of scaffolding in the template will decrease over the semester
